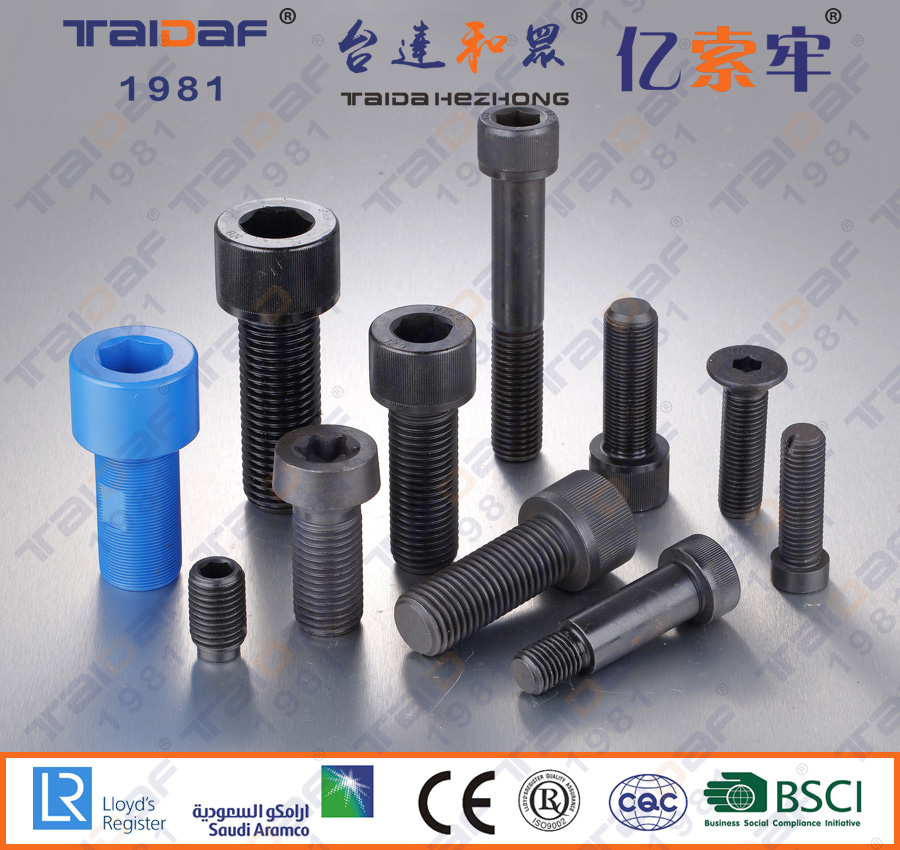

應用范圍 |
內六角螺絲常用于機械上,,大多用于擰到零件內部的內螺紋,內六角便于緊固,拆卸,不容易滑角.適用于經常拆卸的地方,或者空間受限制的地方。 |
基本參數 |
● 材料:碳鋼 合金鋼 ● 規格:M10-M100(/3/8″-4″) ● 長度:20mm~1500mm ● 等級: ● 鋼ISO898:8.8~12.9;ASTM A574、A574M8 ● 表面:發黑、鍍鋅、熱鍍鋅、達克羅、特氟龍等 |
型式尺寸及標記示例 |
|
|
|
尺寸檢驗 |
|
內六角量規尺寸 |
8.8級和10.9級內六角量規尺寸 |
公稱內六角規格s |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
通規 |
對邊寬度A |
max |
1.523 |
2.023 |
2.525 |
3.025 |
4.025 |
5.025 |
6.025 |
min |
1.520 |
2.020 |
2.520 |
3.020 |
4.020 |
5.020 |
6.020 |
對角寬度B |
max |
1.730 |
2.300 |
2.870 |
3.440 |
4.580 |
5.720 |
6.860 |
min |
1.725 |
2.295 |
2.865 |
3.435 |
4.575 |
5.715 |
6.855 |
長度C |
min |
5 |
5 |
7 |
7 |
7 |
7 |
8 |
量規有效長度L1/L2 |
5/3.5 |
5/3.5 |
7/5 |
7/5 |
7/5 |
7/5 |
12/8 |
通規 |
對邊寬度X |
max |
1.545 |
2.060 |
2.580 |
3.080 |
4.095 |
5.140 |
6.140 |
min |
1.543 |
2.058 |
2.575 |
3.075 |
4.090 |
5.135 |
6.135 |
厚度Y |
max |
- |
- |
- |
- |
1.80 |
2.30 |
2.80 |
min |
- |
- |
- |
- |
1.75 |
2.25 |
2.75 |
對角寬度Z |
max |
1.68 |
2.23 |
2.79 |
3.35 |
- |
- |
- |
min |
min |
1.66 |
2.21 |
2.77 |
3.33 |
- |
- |
- |
|
公稱內六角規格s |
8 |
10 |
12 |
14 |
17 |
19 |
22 |
通規 |
對邊寬度A |
max |
8.030 |
10.030 |
12.037 |
14.037 |
17.055 |
19.070 |
22.070 |
min |
8.025 |
10.025 |
12.032 |
14.032 |
17.050 |
19.065 |
22.065 |
對角寬度B |
max |
9.150 |
11.430 |
13.720 |
16.000 |
19.440 |
21.730 |
25.150 |
min |
9.145 |
11.425 |
13.715 |
15.995 |
19.435 |
21.725 |
25.145 |
長度C |
min |
8 |
12 |
12 |
12 |
19 |
19 |
22 |
量規有效長度L1/L2 |
16/11 |
20/14 |
24/16 |
28/19 |
34/24 |
38/26 |
44/31 |
通規 |
對邊寬度X |
max |
8.175 |
10.175 |
12.212 |
14.212 |
17.230 |
19.275 |
22.275 |
min |
8.170 |
10.170 |
12.207 |
14.207 |
17.225 |
19.270 |
22.270 |
厚度Y |
max |
3.80 |
4.80 |
5.75 |
6.75 |
8.10 |
9.10 |
10.50 |
min |
3.75 |
4.75 |
5.70 |
6.70 |
8.05 |
9.05 |
10.45 |
對角寬度Z |
max |
- |
- |
- |
- |
- |
- |
- |
min |
min |
- |
- |
- |
- |
- |
- |
- |
|
12.9級內六角量規尺寸 |
公稱內六角規格s |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
通規 |
對邊寬度A |
max |
1.523 |
2.023 |
2.525 |
3.025 |
4.025 |
5.025 |
6.025 |
min |
1.520 |
2.020 |
2.520 |
3.020 |
4.020 |
5.020 |
6.020 |
對角寬度B |
max |
1.730 |
2.300 |
2.870 |
3.440 |
4.580 |
5.720 |
6.860 |
min |
1.725 |
2.295 |
2.865 |
3.435 |
4.575 |
5.715 |
6.855 |
長度C |
min |
5 |
5 |
7 |
7 |
7 |
7 |
8 |
量規有效長度L1/L2 |
5/3.5 |
5/3.5 |
7/5 |
7/5 |
7/5 |
7/5 |
12/8 |
通規 |
對邊寬度X |
max |
1.545 |
2.045 |
2.560 |
3.071 |
4.084 |
5.084 |
6.095 |
min |
1.543 |
2.043 |
2.555 |
3.066 |
4.079 |
5.079 |
6.090 |
厚度Y |
max |
- |
- |
- |
- |
1.80 |
2.30 |
2.80 |
min |
- |
- |
- |
- |
1.75 |
2.25 |
2.75 |
對角寬度Z |
max |
1.68 |
2.23 |
2.79 |
3.35 |
- |
- |
- |
min |
min |
1.66 |
2.21 |
2.77 |
3.33 |
- |
- |
- |
|
公稱內六角規格s |
8 |
10 |
12 |
14 |
17 |
19 |
22 |
通規 |
對邊寬度A |
max |
8.030 |
10.030 |
12.037 |
14.037 |
17.055 |
19.070 |
22.070 |
min |
8.025 |
2.020 |
2.520 |
3.020 |
4.020 |
5.020 |
6.020 |
對角寬度B |
max |
9.150 |
2.300 |
2.870 |
3.440 |
4.580 |
5.720 |
6.860 |
min |
9.145 |
2.295 |
2.865 |
3.435 |
4.575 |
5.715 |
6.855 |
長度C |
min |
8 |
12 |
12 |
12 |
19 |
19 |
22 |
量規有效長度L1/L2 min |
16/11 |
20/14 |
24/16 |
28/19 |
34/24 |
38/26 |
44/31 |
通規 |
對邊寬度X |
max |
8.115 |
10.115 |
12.142 |
14.142 |
17.230 |
19.275 |
22.275 |
min |
8.110 |
10.110 |
12.137 |
14.137 |
17.225 |
19.270 |
22.270 |
厚度Y |
max |
3.80 |
4.80 |
5.75 |
6.76 |
8.10 |
9.10 |
10.50 |
min |
3.75 |
4.75 |
5.70 |
6.70 |
8.05 |
9.05 |
10.45 |
對角寬度Z |
max |
- |
- |
- |
- |
- |
- |
- |
min |
min |
- |
- |
- |
- |
- |
- |
- |
|
